Permissions and Relationships

This guide walks through two common file-access patterns: personal files (users access only their own) and community files (shared across a group via a junction table and membership). Both patterns build on Hasura permissions applied to the storage.files table.

Personal Files

The simplest pattern — users can upload, view, and delete only their own files in a dedicated bucket.

1. Create a Bucket

Go to the Storage page in the dashboard and click New Bucket in the sidebar. Name it personal.

Note

Alternatively, you can create the bucket via a migration:

INSERT INTO storage.buckets (id)
VALUES ('personal');

2. Configure Permissions

Open Storage → Permissions in the dashboard to reach the permission grid. For each action below, click the cell for the user role and configure it in the rule editor. The JSON equivalent is shown below each rule — you can also paste it directly into the rule editor’s JSON view instead of building the rule visually.

Upload

1. Select With custom check and add a rule: bucket_id equals personal.
2. Under Uploader identity, enable the Prefill uploaded_by_user_id with X-Hasura-User-Id toggle — this automatically tags every upload with uploaded_by_user_id = X-Hasura-User-Id.

Equivalent JSON:

{"bucket_id": {"_eq": "personal"}}

Download

1. Select With custom check.
2. Add two rules (combined with AND by default):
   • uploaded_by_user_id equals X-Hasura-User-Id
   • bucket_id equals personal

Equivalent JSON:

{
  "_and": [
    {"uploaded_by_user_id": {"_eq": "X-Hasura-User-Id"}},
    {"bucket_id": {"_eq": "personal"}}
  ]
}

Delete

Use the same two rules as Download:

• uploaded_by_user_id equals X-Hasura-User-Id
• bucket_id equals personal

Equivalent JSON:

{
  "_and": [
    {"uploaded_by_user_id": {"_eq": "X-Hasura-User-Id"}},
    {"bucket_id": {"_eq": "personal"}}
  ]
}

3. Upload and Query Files

// Upload a file to the personal bucket
const { body } = await nhost.storage.uploadFiles({
  'bucket-id': 'personal',
  'file[]': [file],
})

const uploadedFile = body.processedFiles?.[0]

Note

The pattern is the same as the default bucket — only the bucket-id value changes.

Because metadata lives in Hasura, you can query files via GraphQL — permissions are applied automatically:

const response = await nhost.graphql.request<{
  files: Array<{ id: string; name: string; size: number; mimeType: string; createdAt: string }>
}>({
  query: `query MyFiles {
    files(where: { bucketId: { _eq: "personal" } }, order_by: { createdAt: desc }) {
      id
      name
      size
      mimeType
      createdAt
    }
  }`,
})

// Only returns files uploaded by the current user (enforced by permissions)
const files = response.body.data?.files ?? []

---

Community Files

A more advanced pattern where files are shared with groups. Users join communities, upload files to a shared communities storage bucket, and associate files with communities through a junction table. Access is controlled by membership — only community members can see the community’s files.

Architecture

erDiagram
    communities ||--o{ community_members : has
    communities ||--o{ community_files : has
    community_files }o--|| storage_files : references
    community_members }o--|| auth_users : belongs_to
    storage_files }o--|| auth_users : uploaded_by

    communities {
        uuid id PK
        text name
        text description
    }
    community_members {
        uuid id PK
        uuid user_id FK
        uuid community_id FK
        timestamptz joined_at
    }
    community_files {
        uuid id PK
        uuid file_id FK
        uuid community_id FK
    }
    storage_files {
        uuid id PK
        text name
        uuid bucket_id FK
        uuid uploaded_by_user_id FK
    }
    auth_users {
        uuid id PK
        text display_name
        text email
    }

1. Create the Schema

Go to the Storage page in the dashboard and click New Bucket in the sidebar. Name it communities.

Then create the required tables (via the Dashboard or a migration):

-- Communities
CREATE TABLE public.communities (
    id UUID PRIMARY KEY DEFAULT gen_random_uuid(),
    name TEXT NOT NULL UNIQUE,
    description TEXT,
    created_at TIMESTAMPTZ NOT NULL DEFAULT now()
);

-- Membership junction
CREATE TABLE public.community_members (
    id UUID PRIMARY KEY DEFAULT gen_random_uuid(),
    user_id UUID NOT NULL REFERENCES auth.users(id) ON DELETE CASCADE,
    community_id UUID NOT NULL REFERENCES public.communities(id) ON DELETE CASCADE,
    joined_at TIMESTAMPTZ NOT NULL DEFAULT now(),
    UNIQUE(user_id, community_id)
);

-- File ↔ community junction
CREATE TABLE public.community_files (
    id UUID PRIMARY KEY DEFAULT gen_random_uuid(),
    file_id UUID NOT NULL REFERENCES storage.files(id) ON DELETE CASCADE,
    community_id UUID NOT NULL REFERENCES public.communities(id) ON DELETE CASCADE,
    created_at TIMESTAMPTZ NOT NULL DEFAULT now()
);

2. Configure Relationships

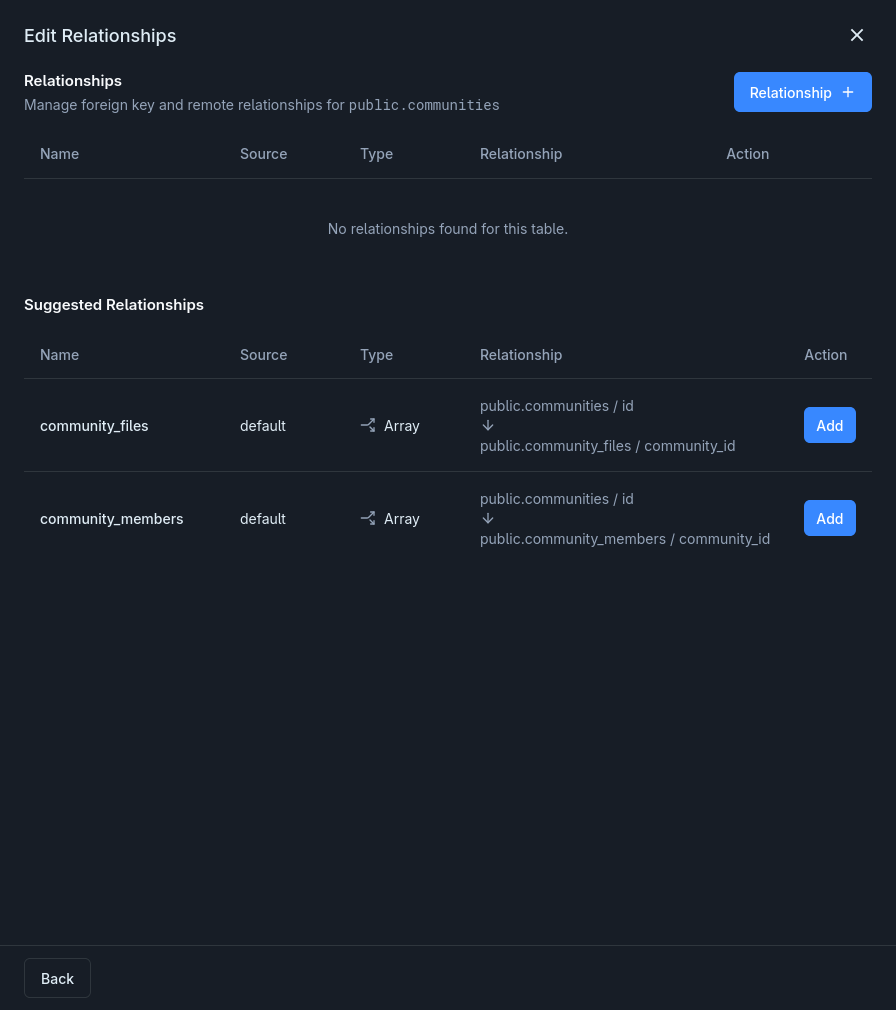

On the Database page sidebar, click the ⋯ menu on each table and choose Edit Relationships. Under Suggested Relationships, every foreign key is listed — click Add and then Create Relationship. Do this for each table below so the relationships appear in the GraphQL API.

From	Name	Type	To
communities	members	Array	community_members
communities	community_files	Array	community_files
community_members	community	Object	communities
community_members	user	Object	auth.users
community_files	community	Object	communities
community_files	file	Object	storage.files
storage.files	community_files	Array	community_files

Note

The dashboard suggests community_members as the name for the array relationship from communities. This guide uses members instead (matching the Nhost demo app) — rename it when you add the relationship, or stick with community_members and substitute it throughout the rules below.

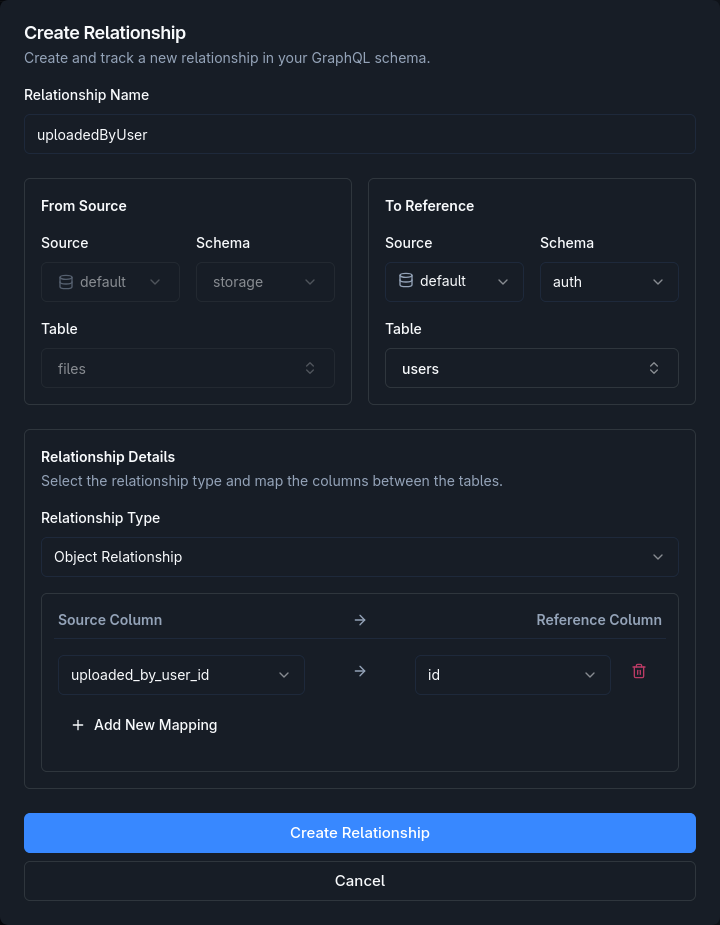

One more relationship links each file to the user who uploaded it. In the Database sidebar, switch to the storage schema, open the files table’s Edit Relationships, and click Relationship +:

• Relationship Name: uploadedByUser
• From Source: default / storage / files
• To Reference: default / auth / users
• Relationship Type: Object Relationship
• Source Column → Reference Column: uploaded_by_user_id → id

Click Create Relationship.

3. Configure Permissions

public.communities (user role)

On the Database page, open the communities table and click Permissions. For the user role, configure Select: choose Without any checks and select all columns. All communities are visible so anyone can browse and join.

public.community_members (user role)

On the Database page, open community_members → Permissions for the user role and configure each operation below.

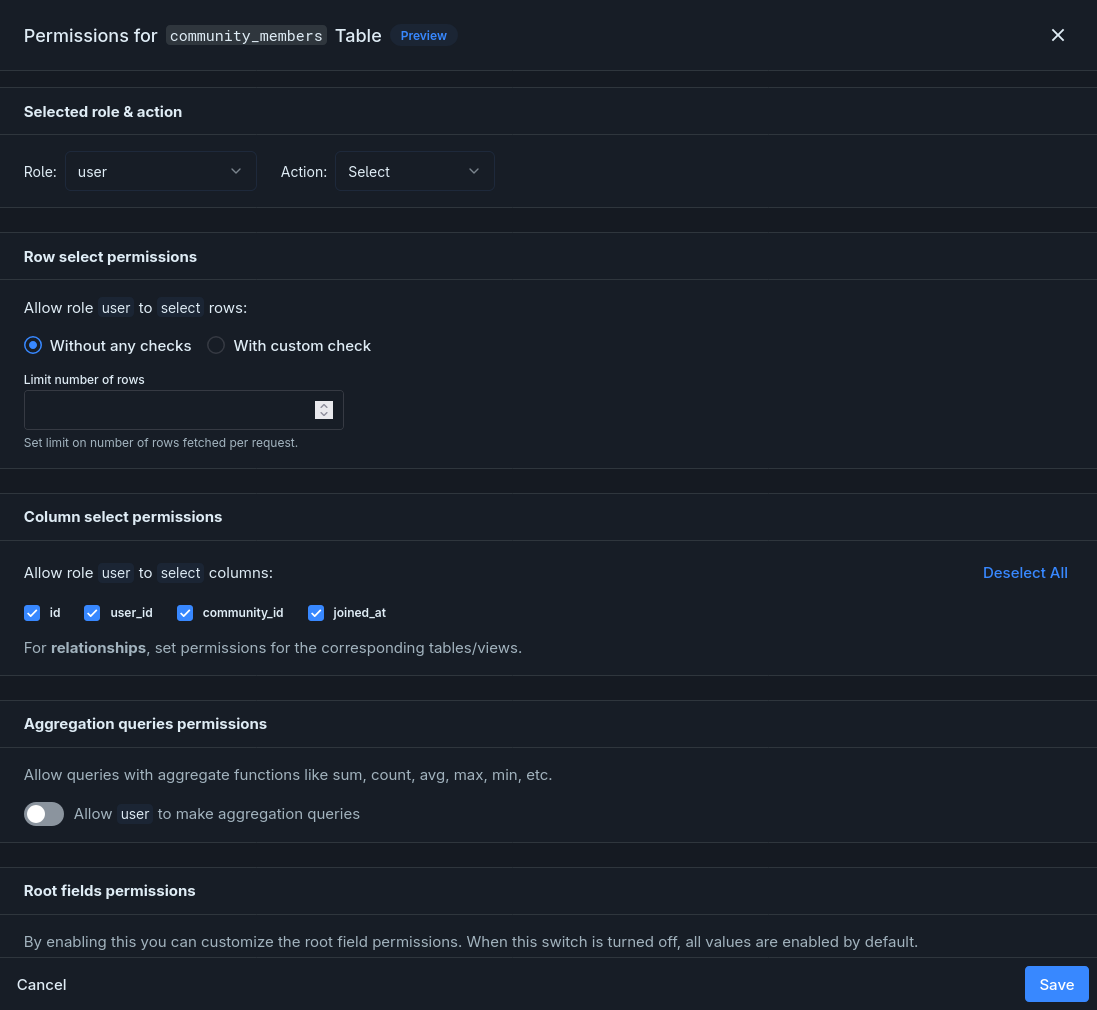

Select

Choose Without any checks and select all columns. Anyone can see who’s a member of any community.

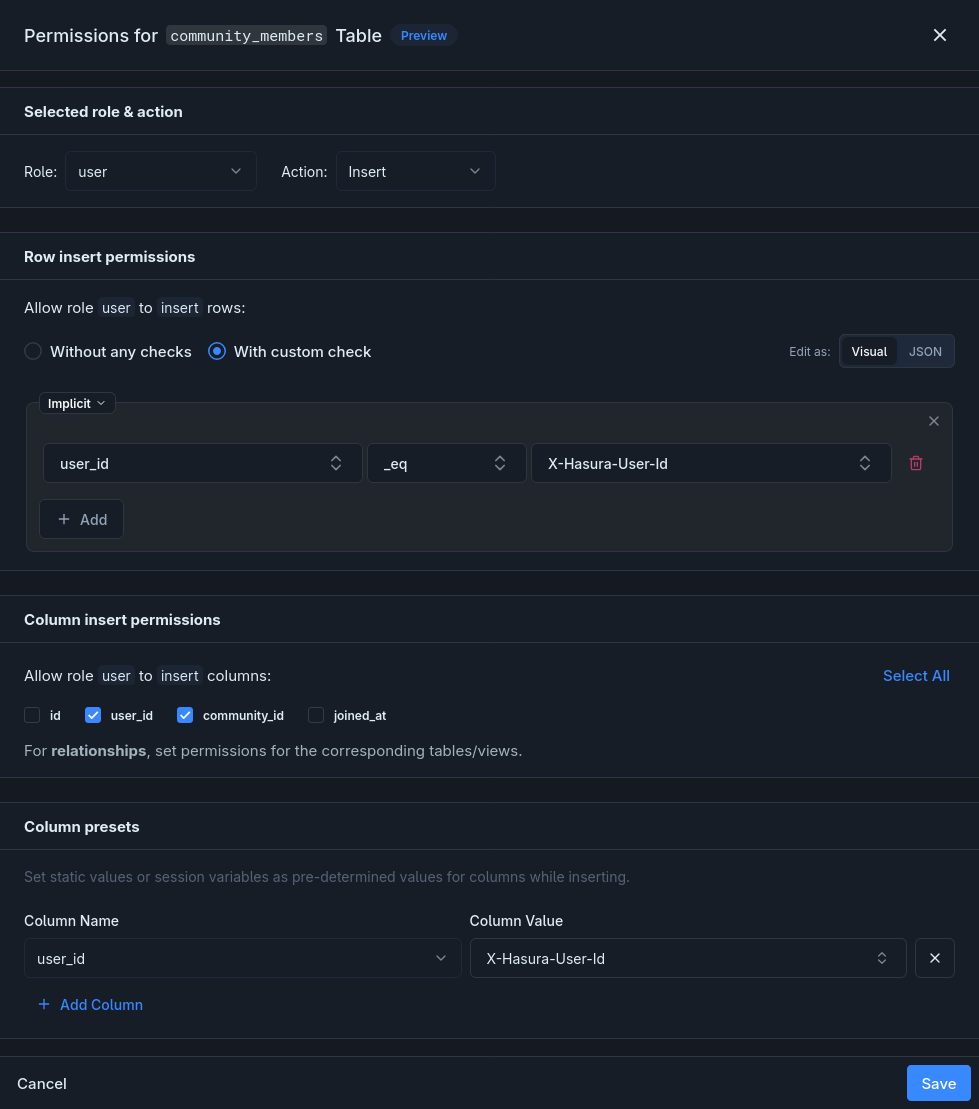

Insert

1. Select With custom check and add a rule: user_id equals X-Hasura-User-Id — this prevents users from adding memberships for other users.
2. Under Column presets, set user_id to X-Hasura-User-Id.
3. Allow columns user_id and community_id.

Equivalent JSON:

{"user_id": {"_eq": "X-Hasura-User-Id"}}

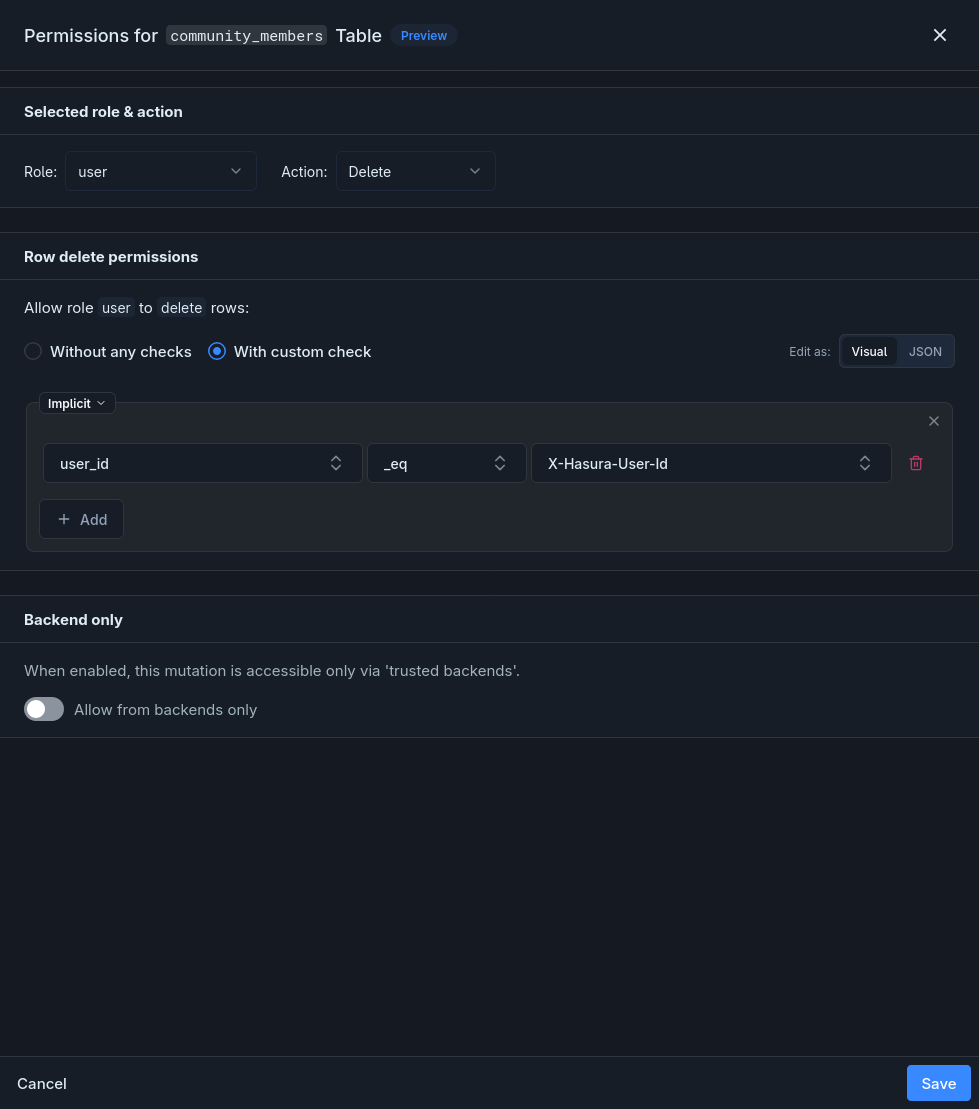

Delete

Select With custom check and add a rule: user_id equals X-Hasura-User-Id. Users can only remove their own memberships.

Equivalent JSON:

{"user_id": {"_eq": "X-Hasura-User-Id"}}

public.community_files (user role)

On the Database page, open community_files → Permissions for the user role and configure each operation below.

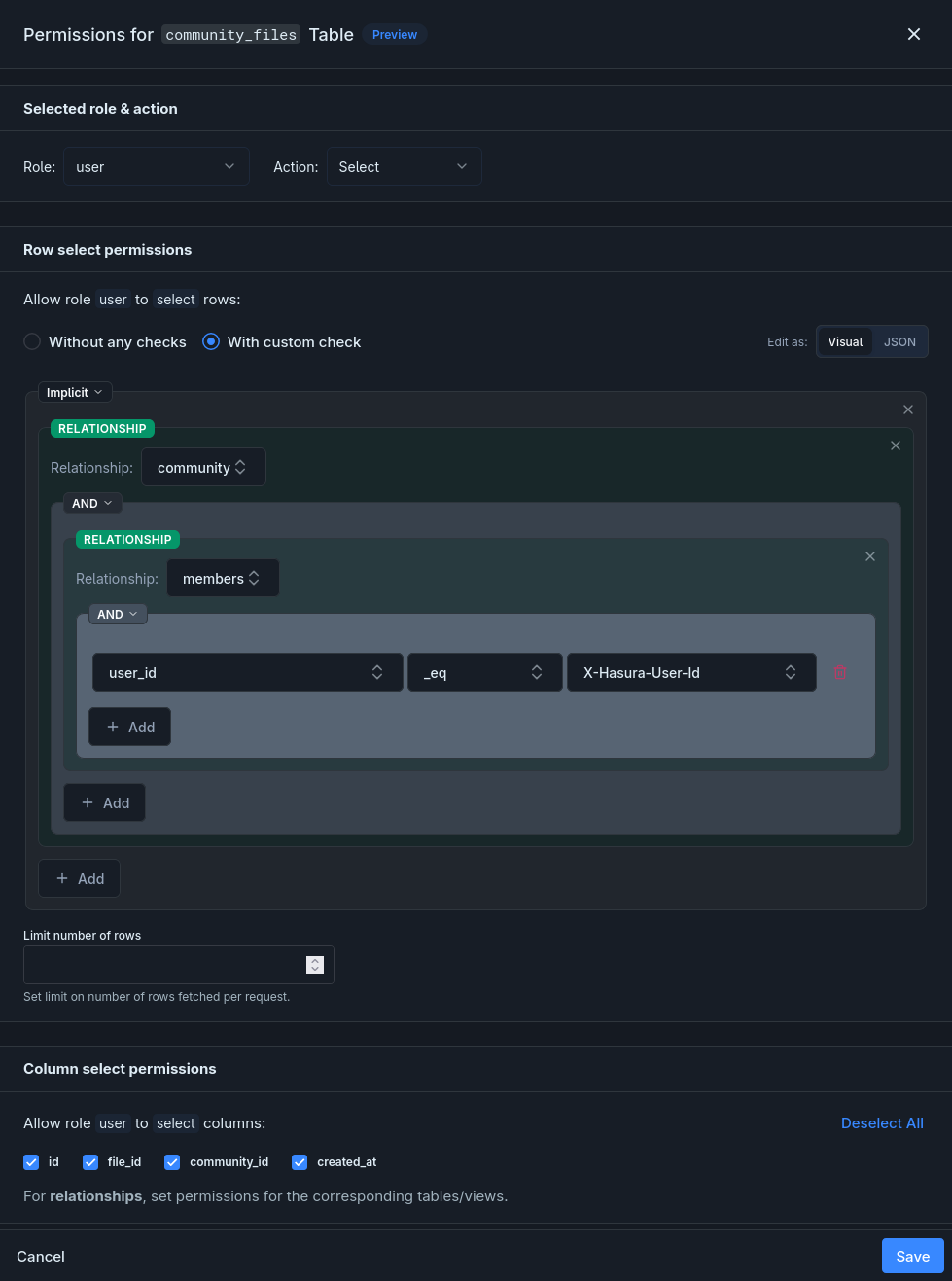

Select

Only members of the file’s community can see it:

1. Select With custom check.
2. Pick relationship community, then pick relationship members, then add condition: user_id equals X-Hasura-User-Id.
3. Allow all columns.

Equivalent JSON:

{"community": {"members": {"user_id": {"_eq": "X-Hasura-User-Id"}}}}

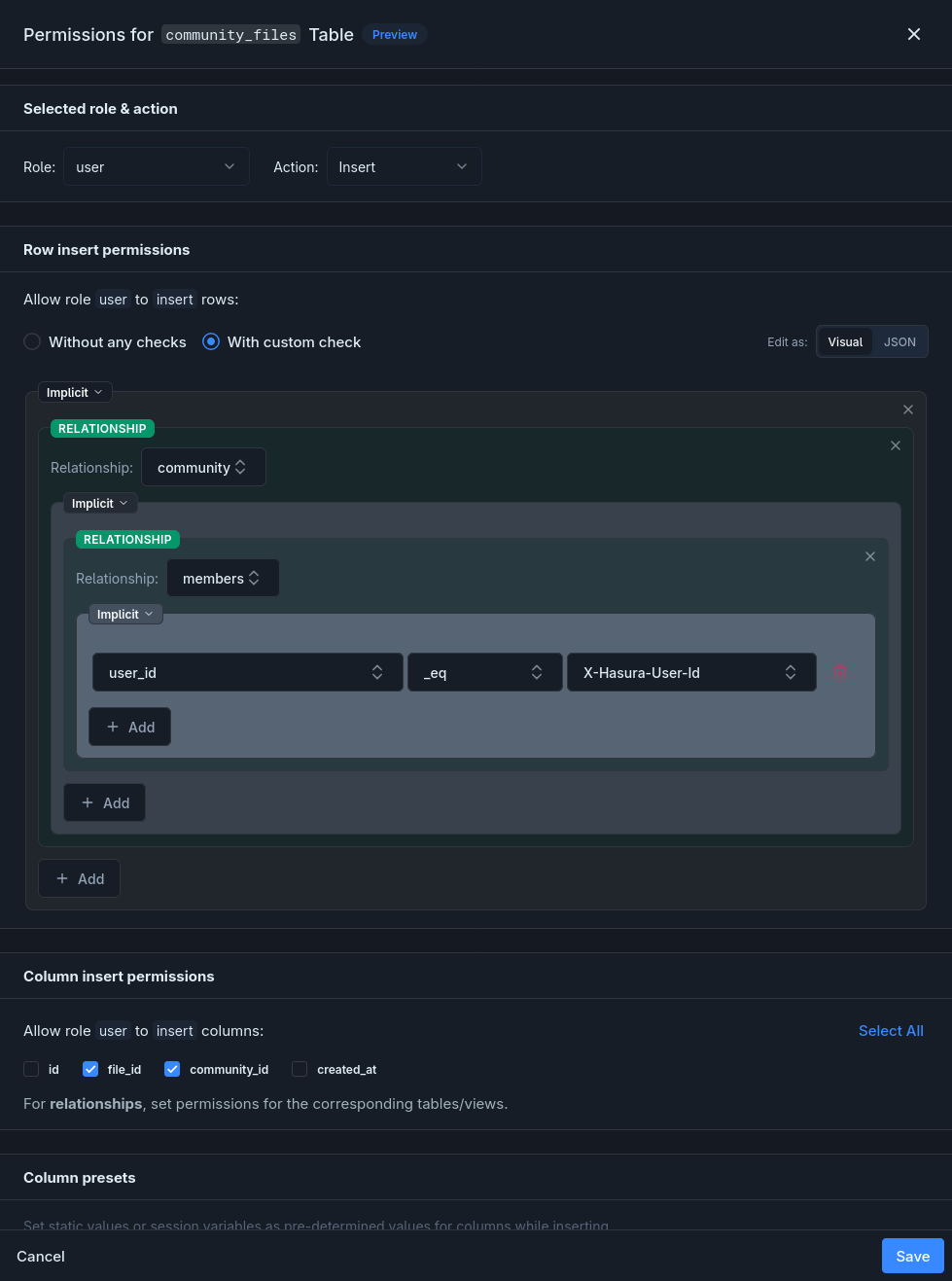

Insert

1. Select With custom check.
2. Pick relationship community → members, then add condition: user_id equals X-Hasura-User-Id.
3. Allow columns file_id and community_id.

Equivalent JSON:

{"community": {"members": {"user_id": {"_eq": "X-Hasura-User-Id"}}}}

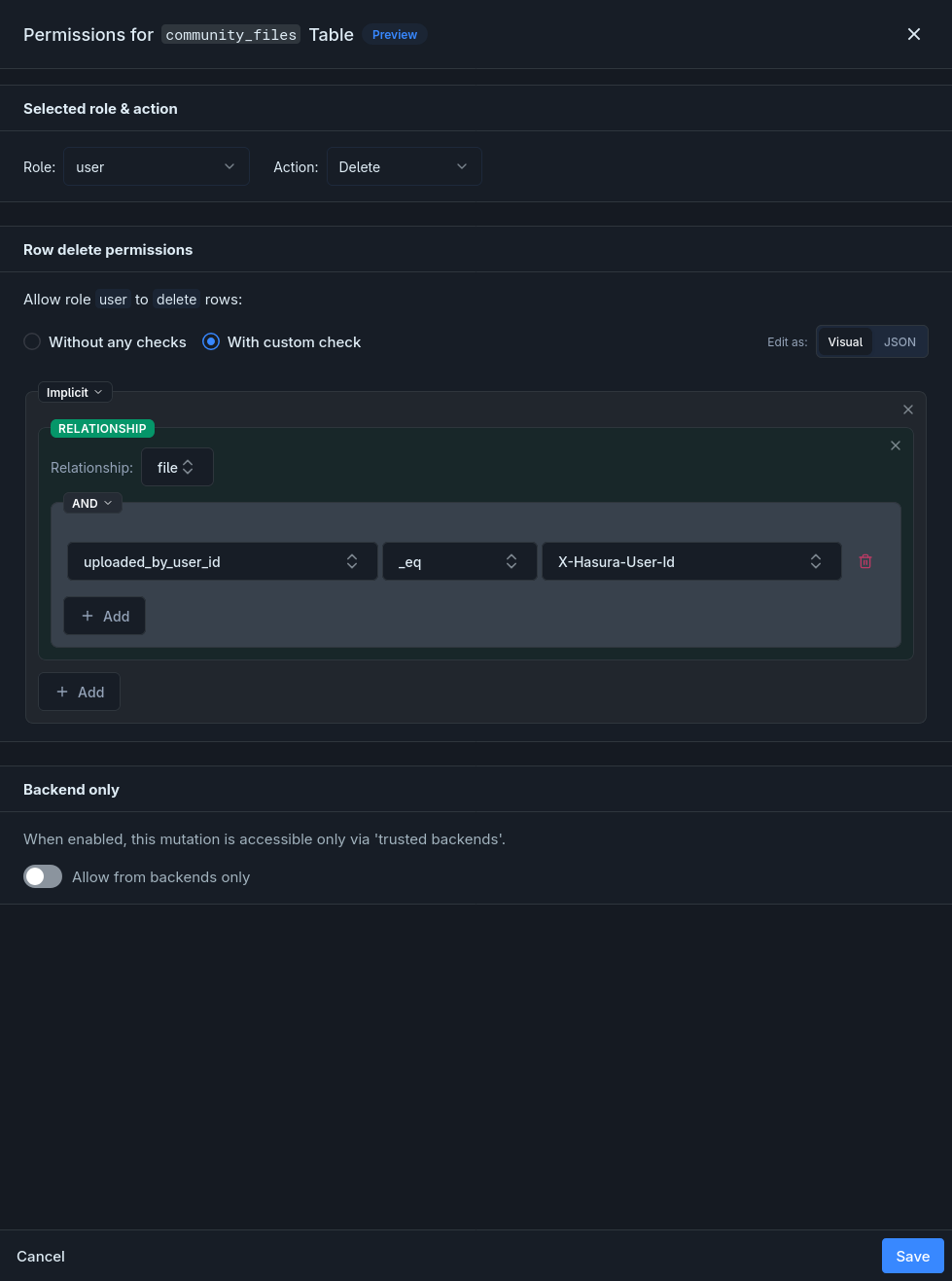

Delete

Only the uploader of the underlying file can remove the association:

1. Select With custom check.
2. Pick relationship file, then add condition: uploaded_by_user_id equals X-Hasura-User-Id.

Equivalent JSON:

{"file": {"uploaded_by_user_id": {"_eq": "X-Hasura-User-Id"}}}

Storage permissions (user role)

Configure the Storage permissions for the user role: Upload, Download, and Delete each get their own rule.

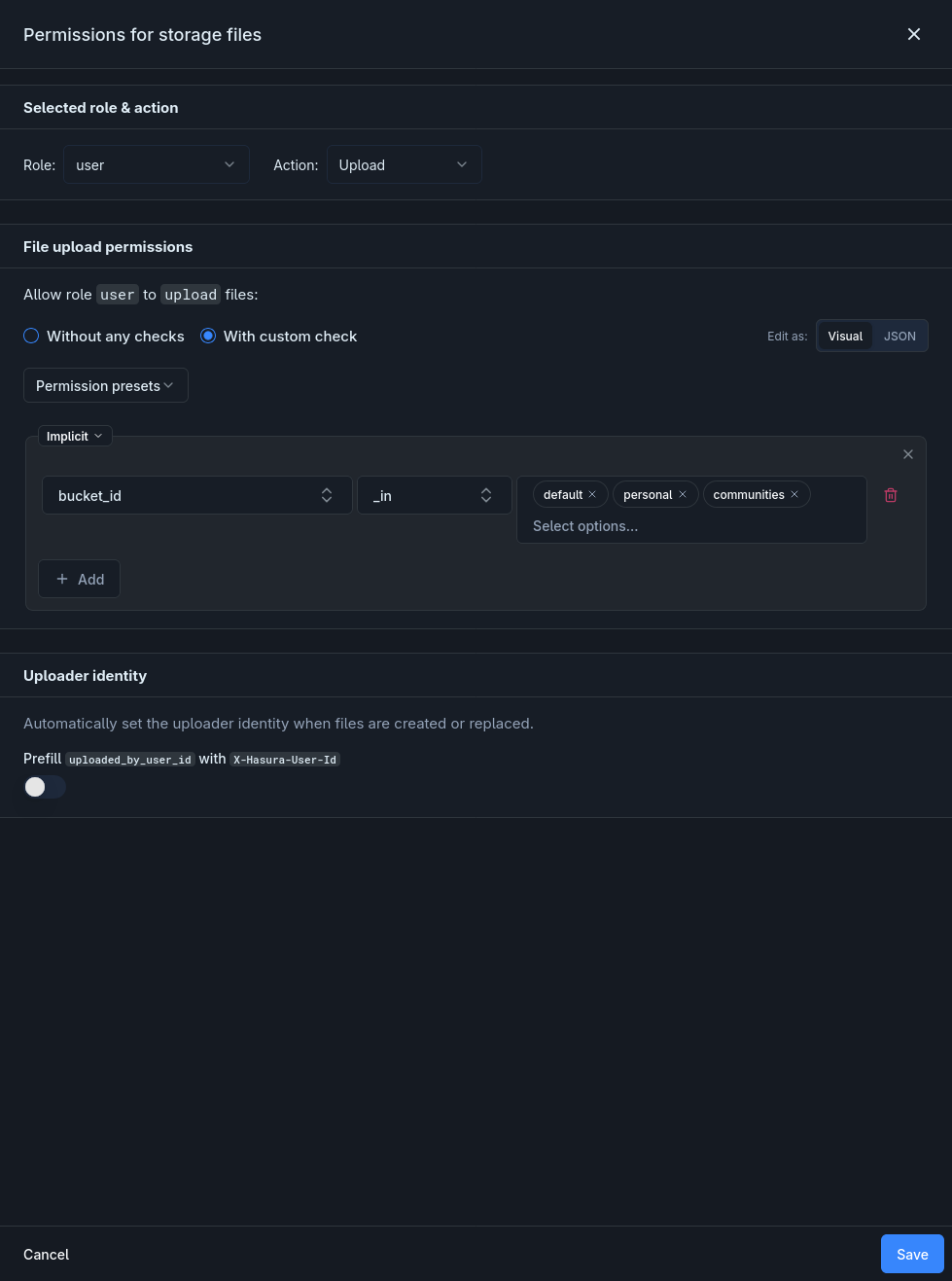

Upload

Click the Upload cell for the user role:

1. Select With custom check and add a rule: bucket_id is in default, personal, communities.
2. Under Uploader identity, enable the Prefill uploaded_by_user_id with X-Hasura-User-Id toggle.

Equivalent JSON:

{"bucket_id": {"_in": ["default", "personal", "communities"]}}

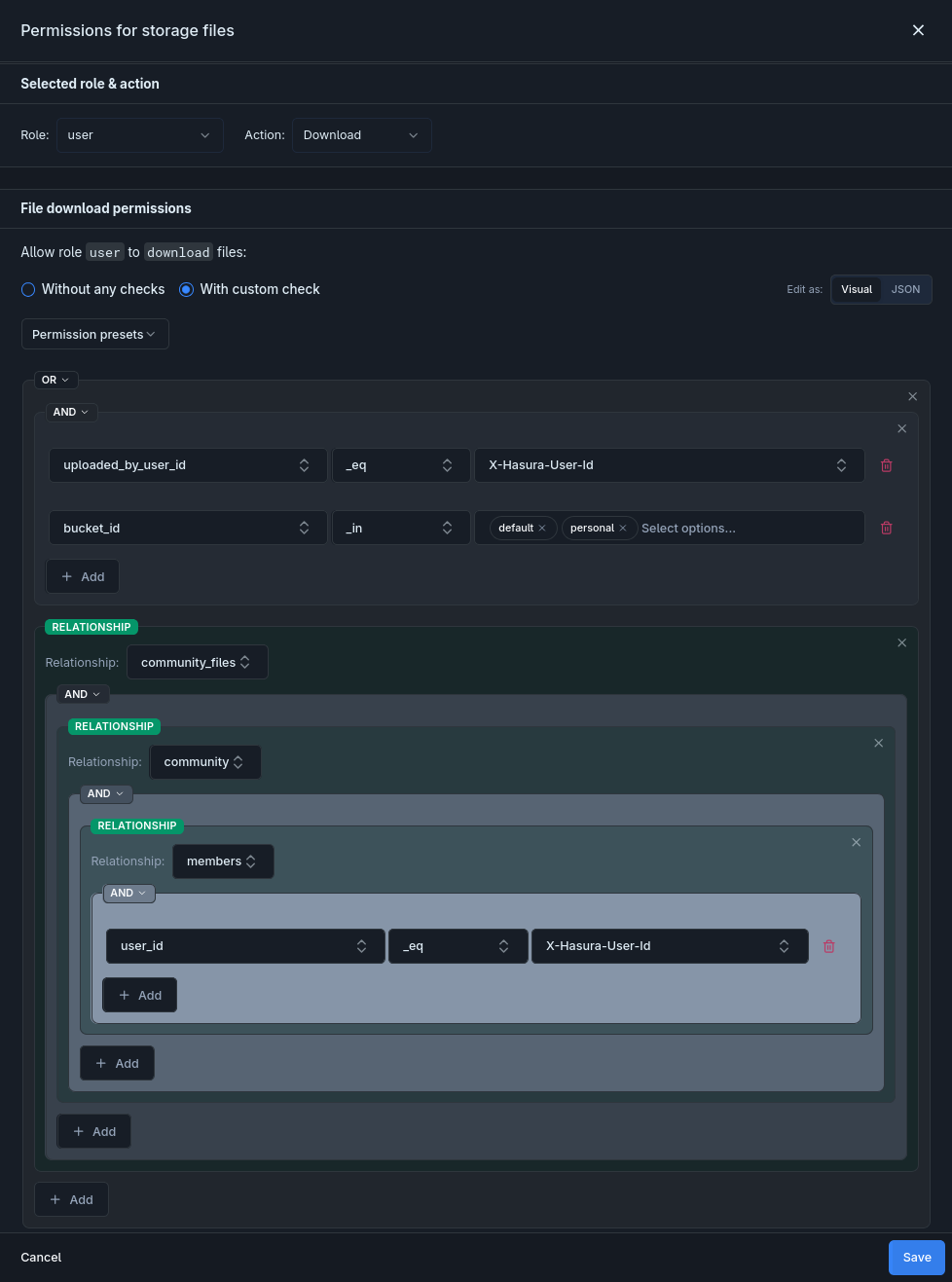

Download

Users can see their own files in default/personal buckets, plus any community files they have membership for:

1. Click the Download cell for the user role, select With custom check.
2. Change the root group operator to OR.
3. Add the first branch — an AND group with two conditions:
   • uploaded_by_user_id equals X-Hasura-User-Id
   • bucket_id is in default, personal
4. Add the second branch: pick relationship community_files → community → members, then add condition user_id equals X-Hasura-User-Id.

Equivalent JSON:

{
  "_or": [
    {
      "_and": [
        {"uploaded_by_user_id": {"_eq": "X-Hasura-User-Id"}},
        {"bucket_id": {"_in": ["default", "personal"]}}
      ]
    },
    {"community_files": {"community": {"members": {"user_id": {"_eq": "X-Hasura-User-Id"}}}}}
  ]
}

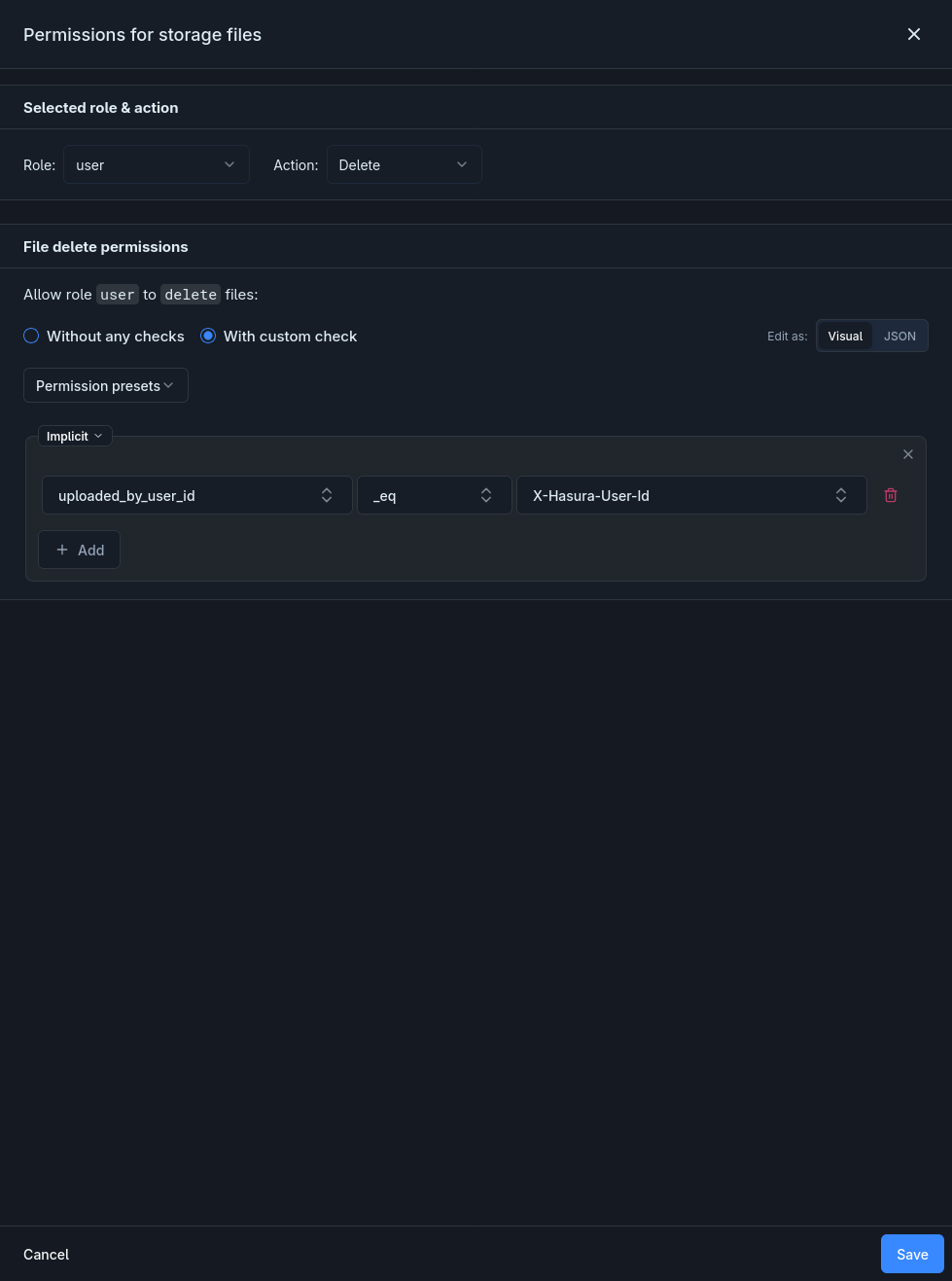

Delete

Click the Delete cell for the user role. Select With custom check and add a rule: uploaded_by_user_id equals X-Hasura-User-Id.

Equivalent JSON:

{"uploaded_by_user_id": {"_eq": "X-Hasura-User-Id"}}

4. Join and Leave Communities

// Join a community
await nhost.graphql.request({
  query: `mutation JoinCommunity($communityId: uuid!) {
    insert_community_members_one(object: { community_id: $communityId }) {
      id
    }
  }`,
  variables: { communityId },
})

// Leave a community
await nhost.graphql.request({
  query: `mutation LeaveCommunity($communityId: uuid!, $userId: uuid!) {
    delete_community_members(where: {
      community_id: { _eq: $communityId },
      user_id: { _eq: $userId }
    }) {
      affected_rows
    }
  }`,
  variables: { communityId, userId },
})

The insert permission’s column preset automatically sets user_id to the authenticated user, and the check constraint prevents users from adding memberships for other users.

5. Upload and Assign to a Community

// 1. Upload the file to the communities bucket
const uploadResponse = await nhost.storage.uploadFiles({
  'bucket-id': 'communities',
  'file[]': [file],
})

const uploadedFile = uploadResponse.body.processedFiles?.[0]
if (!uploadedFile?.id) throw new Error('Upload failed')

// 2. Associate the file with a community
await nhost.graphql.request({
  query: `mutation AddCommunityFile($fileId: uuid!, $communityId: uuid!) {
    insert_community_files_one(object: {
      file_id: $fileId,
      community_id: $communityId
    }) {
      id
    }
  }`,
  variables: { fileId: uploadedFile.id, communityId },
})

6. Query Community Files

const response = await nhost.graphql.request<{
  community_files: Array<{
    id: string
    file: { id: string; name: string; size: number; mimeType: string; uploadedByUser: { displayName: string } | null }
  }>
}>({
  query: `query GetCommunityFiles($communityId: uuid!) {
    community_files(where: { community_id: { _eq: $communityId } }) {
      id
      file {
        id
        name
        size
        mimeType
        uploadedByUser {
          displayName
        }
      }
    }
  }`,
  variables: { communityId },
})

// Permissions automatically filter to communities the user is a member of
const communityFiles = response.body.data?.community_files ?? []

7. Remove a File from a Community

// Remove the junction record
await nhost.graphql.request({
  query: `mutation RemoveCommunityFile($id: uuid!) {
    delete_community_files_by_pk(id: $id) {
      id
    }
  }`,
  variables: { id: communityFileId },
})

// Optionally delete the file from storage entirely
await nhost.storage.deleteFile(fileId)

The ON DELETE CASCADE on community_files.file_id automatically removes all community associations when the storage file is deleted.
