Rule Editor

When you configure permissions — whether on the Database page (table permissions) or the Storage page (file permissions) — selecting With custom check opens the rule editor. It lets you describe who can access which rows visually, instead of writing the permission JSON by hand.

The examples on this page come from the Nhost demo app — a small app where users join communities and share files inside them.

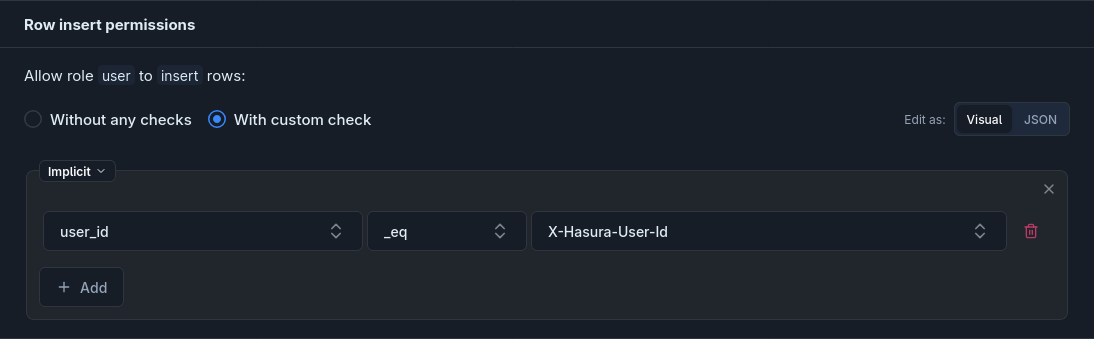

For example, the Insert permission on community_members is a single condition: user_id _eq X-Hasura-User-Id — users can only join communities as themselves, not on behalf of someone else.

A new check starts out empty — click Add check to add your first rule.

Adding elements

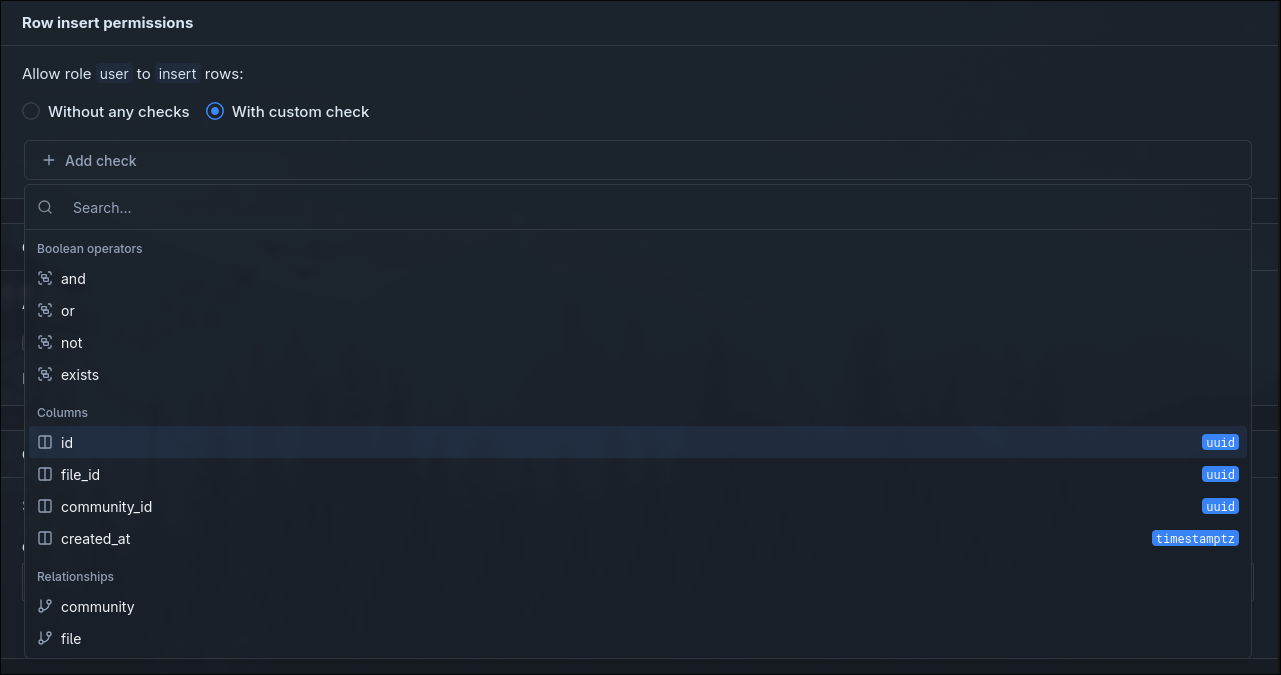

Click Add to open the picker. It offers three kinds of additions:

• Boolean operators — and, or, not, or exists. Starts a new group you can fill with further checks.
• Columns — every column on the current table. Adds a condition row (column operator value), defaulting to _eq.
• Relationships — every relationship defined on the current table. Opens a nested area where you can write checks against the related table.

Conditions

Each condition row has three parts: column, operator, and value. The available operators depend on the column’s type.

Column type	Operators
All columns	_eq, _neq, _in, _nin, _gt, _lt, _gte, _lte, _is_null
All columns (compare to another column)	_ceq, _cne, _cgt, _clt, _cgte, _clte
Text (text, varchar, bpchar)	plus _like, _nlike, _ilike, _nilike, _similar, _nsimilar, _regex, _nregex, _iregex, _niregex
JSONB	plus _contains, _contained_in, _has_key, _has_keys_any, _has_keys_all

The value input adapts to the operator:

• _is_null — a true/false select.
• _in / _nin — a multi-select where you can pick a session variable or enter literal values.
• _ceq / _cne / _cgt / _clt / _cgte / _clte — a column picker; the right-hand side is another column on the same table.
• Everything else — a combobox listing the session variables available for your project (X-Hasura-User-Id, X-Hasura-Role, plus any custom claims you’ve defined under Settings → Roles and Permissions → Permission Variables). You can also type a literal value.

Groups and logical operators

Every group has a badge in the top-left showing how its children combine. Click the badge to change it.

Badge	Meaning
Implicit	Children are combined with AND. Default for the root group.
AND	All children must match.
OR	At least one child must match.
NOT	The group’s contents must not match.

Groups can contain other groups, relationships, exists blocks, or conditions. Nesting is unlimited.

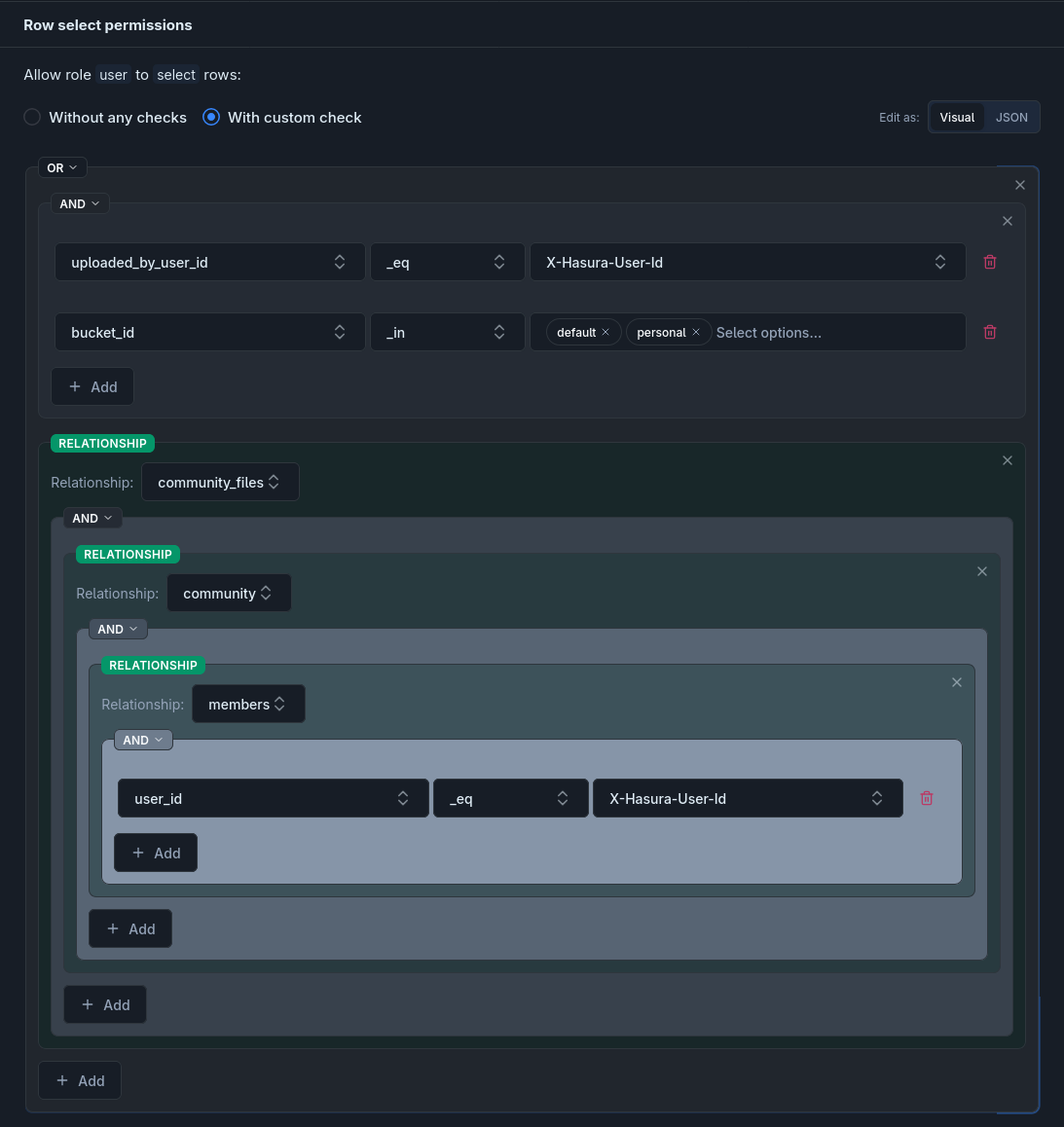

For example, the demo’s Select permission on storage.files reads “I can see a file if I uploaded it into the default or personal bucket, or if it belongs to a community I’m a member of.” It decomposes into editor parts as follows:

• Root group: OR badge.
• First branch: an AND group containing uploaded_by_user_id _eq X-Hasura-User-Id and bucket_id _in [default, personal].
• Second branch: the relationship chain community_files → community → members ending in a condition user_id _eq X-Hasura-User-Id.

The resulting JSON:

{
  "_or": [
    {
      "_and": [
        {"uploaded_by_user_id": {"_eq": "X-Hasura-User-Id"}},
        {"bucket_id": {"_in": ["default", "personal"]}}
      ]
    },
    {"community_files": {"community": {"members": {"user_id": {"_eq": "X-Hasura-User-Id"}}}}}
  ]
}

Relationships

Picking a Relationship from the Add popover lets you write checks against the related table. You can keep picking relationships to go further — each one steps one relationship deeper in the schema.

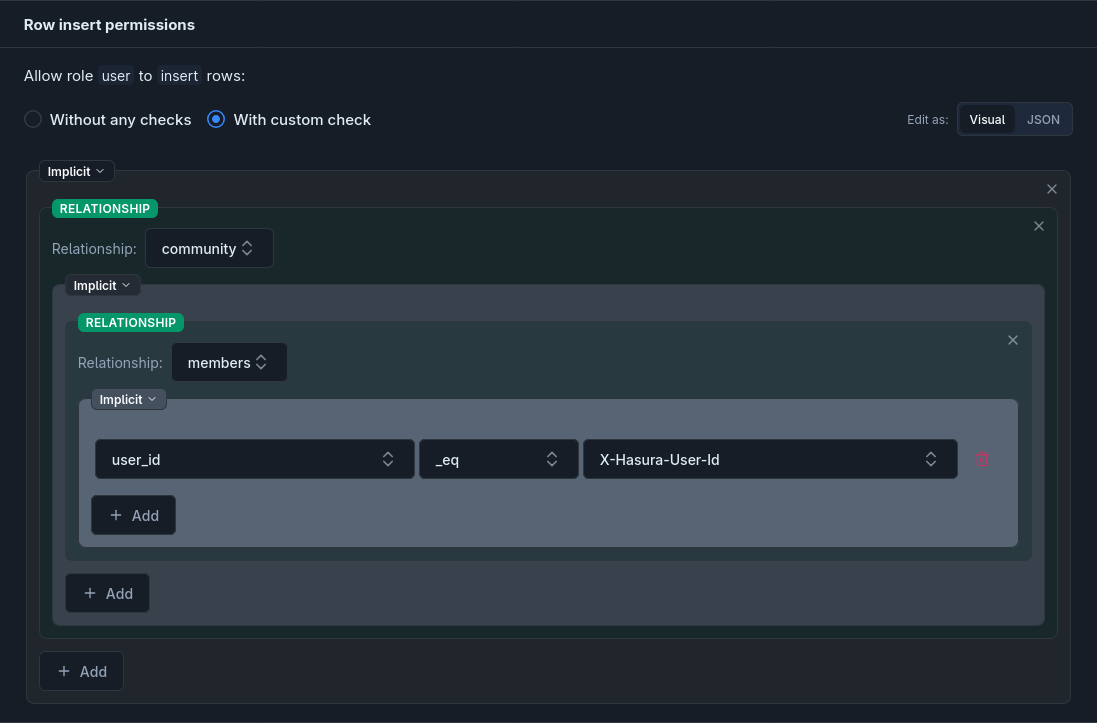

For example, the demo’s Select and Insert permissions on community_files read “the current user is a member of this file’s community.” Rather than comparing a column directly, the rule traverses the chain community_files → community → members (where community is an object relationship to communities, and members is the array relationship from communities to community_members). It decomposes into editor parts as follows:

• A relationship community on community_files, opening a nested area on communities.
• Inside that, a relationship members, opening a nested area on community_members.
• Inside that, a condition user_id _eq X-Hasura-User-Id.

Note

The demo renames the array relationship on communities from the dashboard’s default suggestion (community_members) to members to keep queries shorter. If you build the same schema fresh in the dashboard, the suggested name will be community_members — substitute that for members above.

The resulting JSON:

{
  "community": {
    "members": {
      "user_id": {
        "_eq": "X-Hasura-User-Id"
      }
    }
  }
}

Exists

Picking exists from the Add popover lets you check against any table that has no foreign key to the row being permission-checked — typical cases are feature flags, allow/deny lists, and global settings tables. You pick the schema and table, then add conditions the same way as anywhere else.

JSON output

The editor produces a JSON permission expression. Each element maps directly:

Editor element	JSON
Group with AND	{"_and": [child1, child2, ...]}
Group with OR	{"_or": [child1, child2, ...]}
Group with NOT	{"_not": child}
Implicit group	Children merged into the parent object
Condition	{"<column>": {"<operator>": <value>}}
Relationship	{"<relationship>": <child>}
Exists	{"_exists": {"_table": {"schema": "...", "name": "..."}, "_where": <where>}}

Any rule written as JSON — for example in a migration — can be rebuilt element-by-element in the editor, and vice versa. You can also switch the editor to its JSON view and paste a rule directly, then switch back to the visual view to edit it as a tree.
