Remote Schemas

Remote Schemas allow you to extend your GraphQL API by integrating external GraphQL services into a single, unified endpoint. This is useful when you need to combine data from multiple sources, integrate third-party GraphQL APIs, or connect microservices into your main API.

When you add a Remote Schema, its types and operations are merged with your existing GraphQL schema. Your clients can then query both your database and the remote service in a single request.

Use Cases

• Third-party integrations: Connect to external GraphQL APIs like payment processors, CMS platforms, or analytics services
• Microservices architecture: Unify multiple internal GraphQL services under one endpoint
• Custom GraphQL services on Nhost Run: Build your own GraphQL servers and deploy them on Nhost Run, then connect them via Remote Schemas. For example, you could create a dedicated billing service that handles subscription management and expose it through your main GraphQL API
• Legacy system integration: Expose existing services through your GraphQL API

Adding a Remote Schema

1. Navigate to Remote Schemas

   In your project dashboard, go to GraphQL > Remote Schemas.

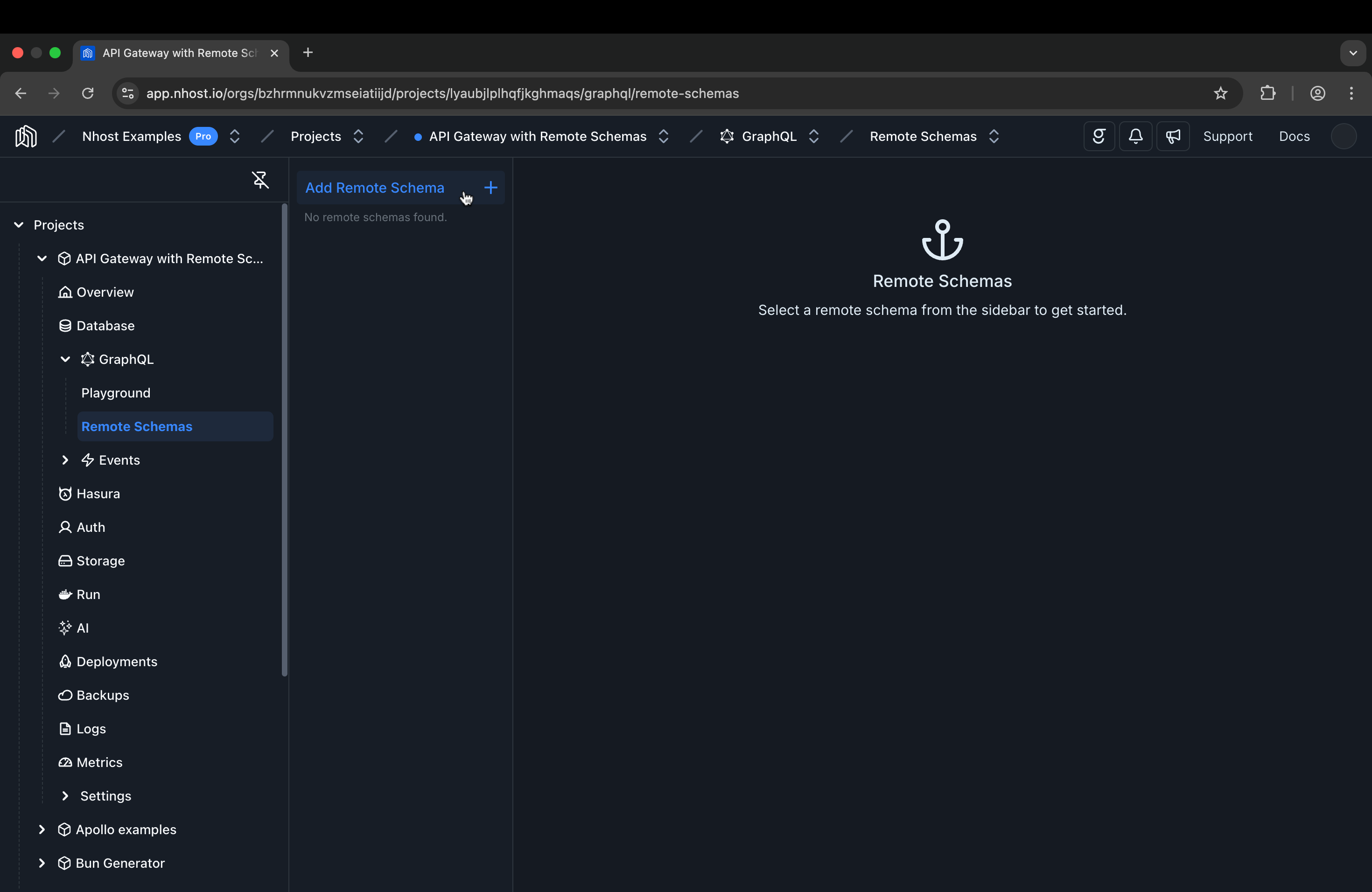

2. Create a new Remote Schema

   Click Add Remote Schema to open the configuration form.

3. Configure the connection

   Fill in the required fields:

   • Name: A unique identifier for this Remote Schema (e.g., payments_api)
   • GraphQL Server URL: The endpoint URL of the remote GraphQL service
   • Timeout: Request timeout in seconds (default: 60)

4. Save and verify

   Click Create to save. The schema will be fetched and merged with your API. You can verify the integration by checking the GraphQL Explorer for the new types and operations or in the Schema Preview section of the Remote Schema.

Note

You can use environment variables in the URL using the {{VARIABLE_NAME}} syntax. For example: https://api.example.com/graphql?key={{API_KEY}}. See Environment Variables for more details.

Configuring Headers

Remote services often require authentication or custom headers. You can configure these in the Headers section when creating or editing a Remote Schema.

Static Headers

Use static headers for non-sensitive values that don’t change:

Header Name	Value
x-client-id	nhost-integration
x-source	main-api

Environment Variable Headers

For sensitive values like API keys, tokens, and credentials, use environment variables that reference Nhost Secrets. This keeps your credentials secure and makes it easy to rotate them without modifying your Remote Schema configuration:

Header Name	Value
Authorization	Bearer {{PAYMENTS_API_TOKEN}}
x-api-key	{{EXTERNAL_API_KEY}}

Forward Client Headers

Enable Forward Client Headers to pass headers from the original client request to the remote service. This is useful when the remote service needs to receive authentication tokens or other context from your users.

When enabled, headers from the client (like Authorization) are forwarded to the remote GraphQL server along with any additional headers you’ve configured.

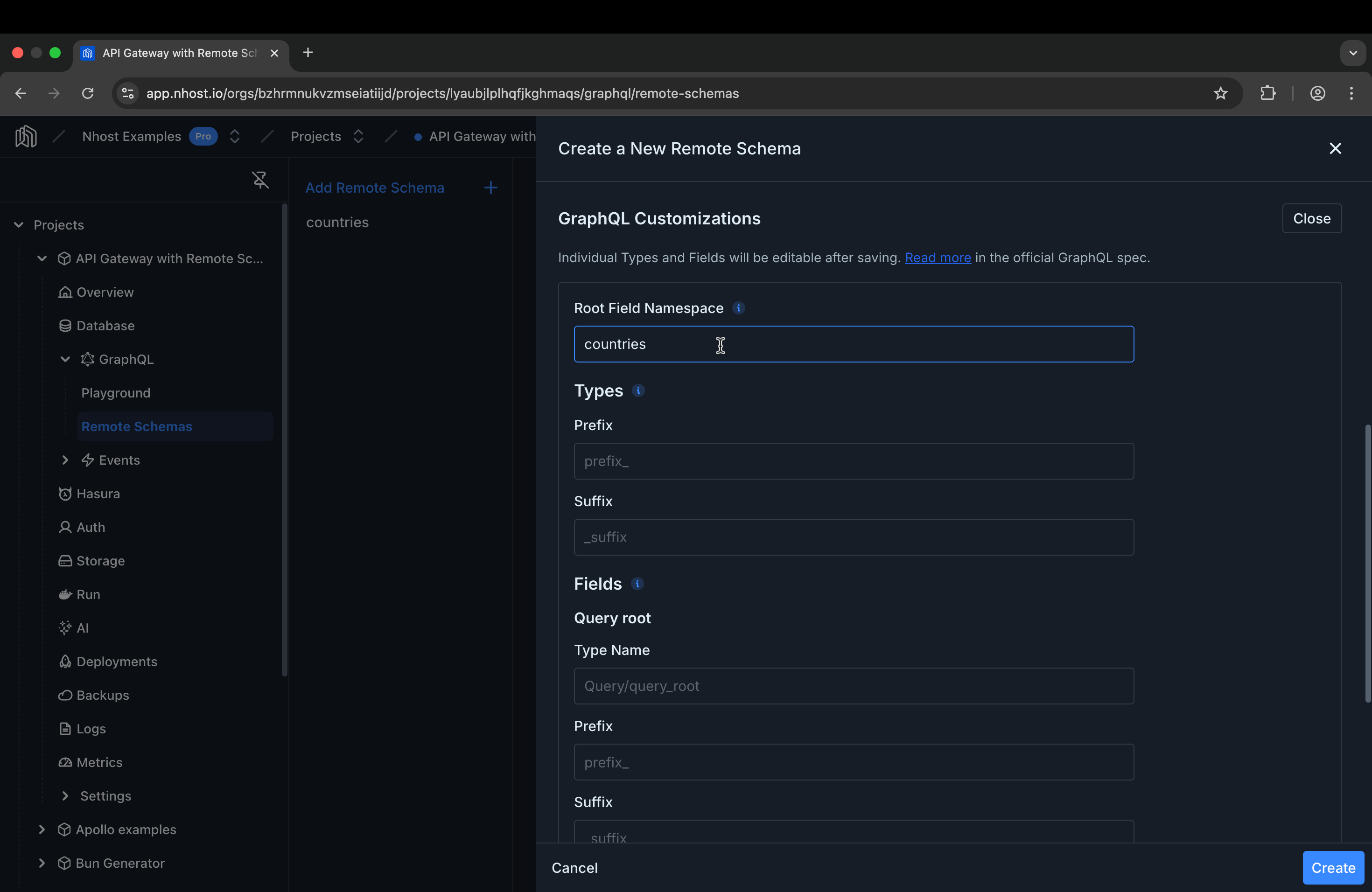

GraphQL Customizations

When merging schemas, naming conflicts can occur if the remote schema uses type or field names that already exist in your schema. Use GraphQL Customizations to add prefixes, suffixes, or namespaces to avoid conflicts.

Root Field Namespace

Add a namespace to group all root fields from the remote schema under a single field. For example, setting the namespace to payments transforms:

# Before
query {
  getInvoice(id: "123") { ... }
}

# After
query {
  payments {
    getInvoice(id: "123") { ... }
  }
}

Type Name Customization

Add a prefix or suffix to all type names from the remote schema:

Setting	Example Value	Result
Type Prefix	Payments_	Invoice becomes Payments_Invoice
Type Suffix	_External	Invoice becomes Invoice_External

Root Field Customization

Similarly, you can customize query and mutation root field names with prefixes or suffixes to prevent naming collisions.

Permissions

By default, Remote Schema permissions are disabled, which means all Remote Schemas are public and all roles have unrestricted access to them. To restrict access and control which roles can query specific Remote Schema fields, you need to enable Remote Schema permissions.

Once enabled, access to Remote Schemas is restricted for all roles (except admin) unless you explicitly grant permissions.

dashboard

Navigate to Settings > Hasura and enable the Remote Schema Permissions toggle.

toml

[hasura.settings]
enableRemoteSchemaPermissions = true

Configuring Role Access

Once enabled, you can configure permissions for each role:

1. Open the Remote Schema

   Navigate to GraphQL > Remote Schemas and click on the Remote Schema you want to configure.

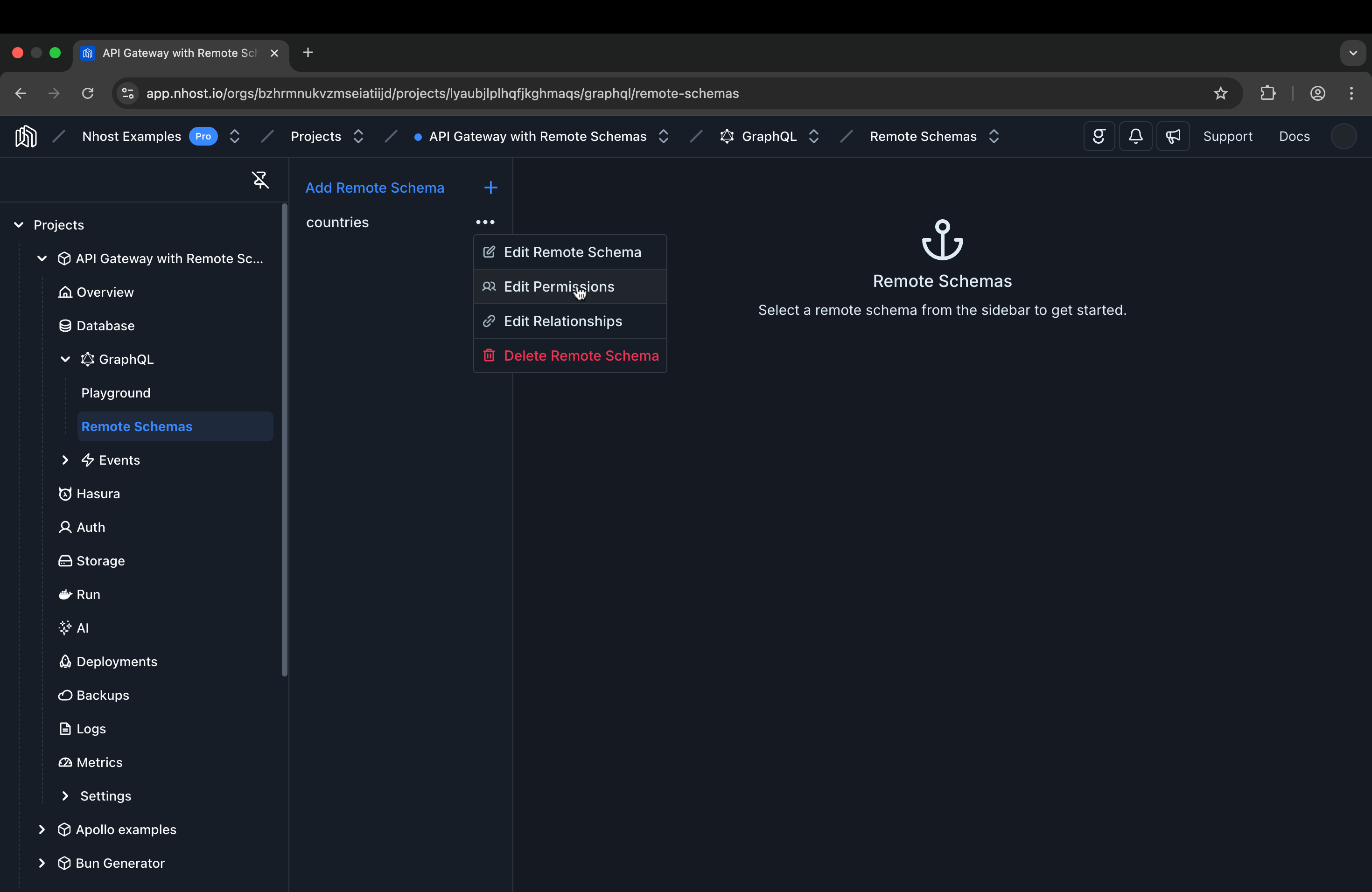

2. Go to Permissions

   Click on the … menu for the Remote Schema, then select Edit Permissions to view the permissions table with all available roles.

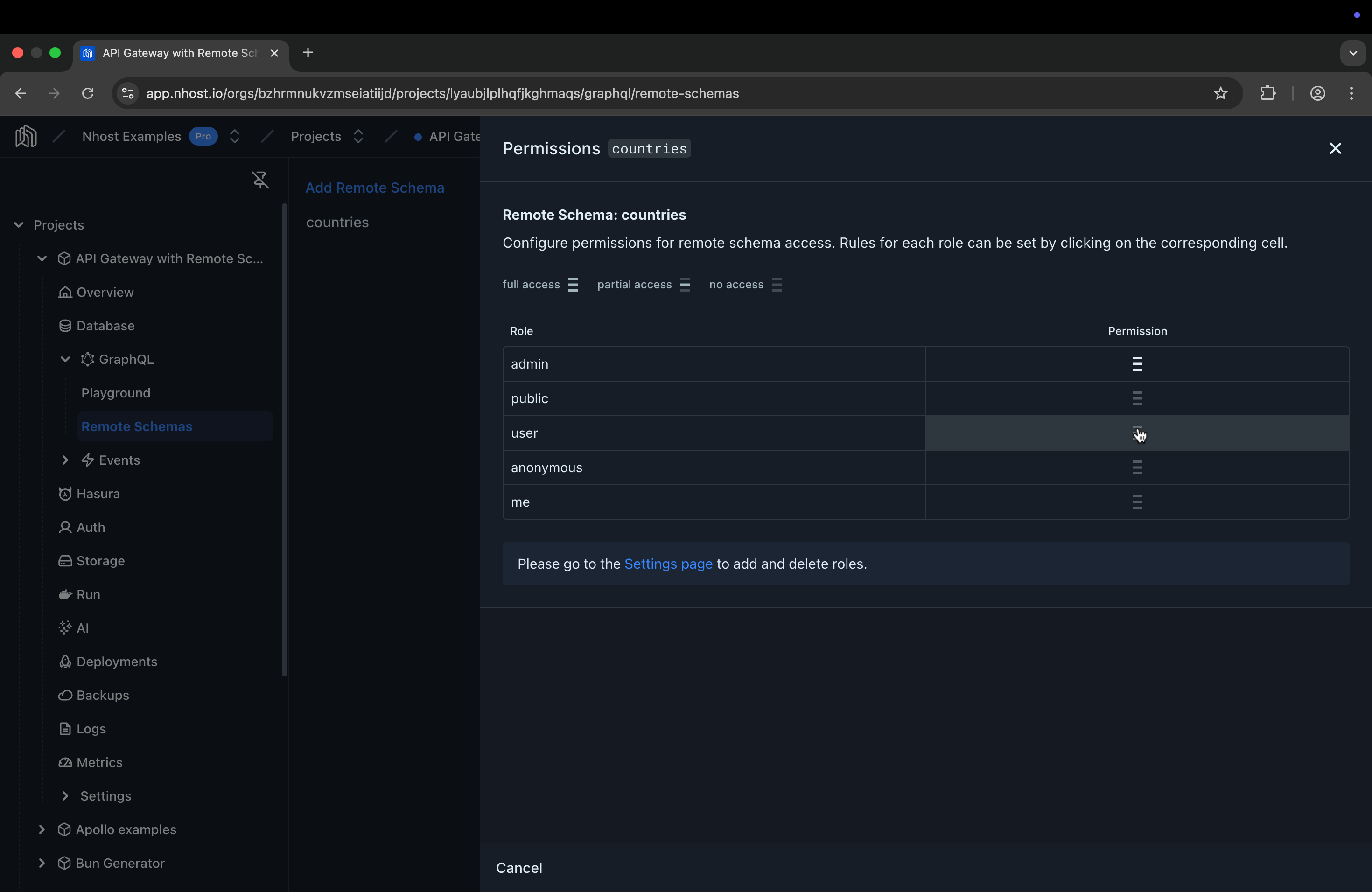

3. Edit permissions for a role

   Click on the Permission cell for the role you want to configure.

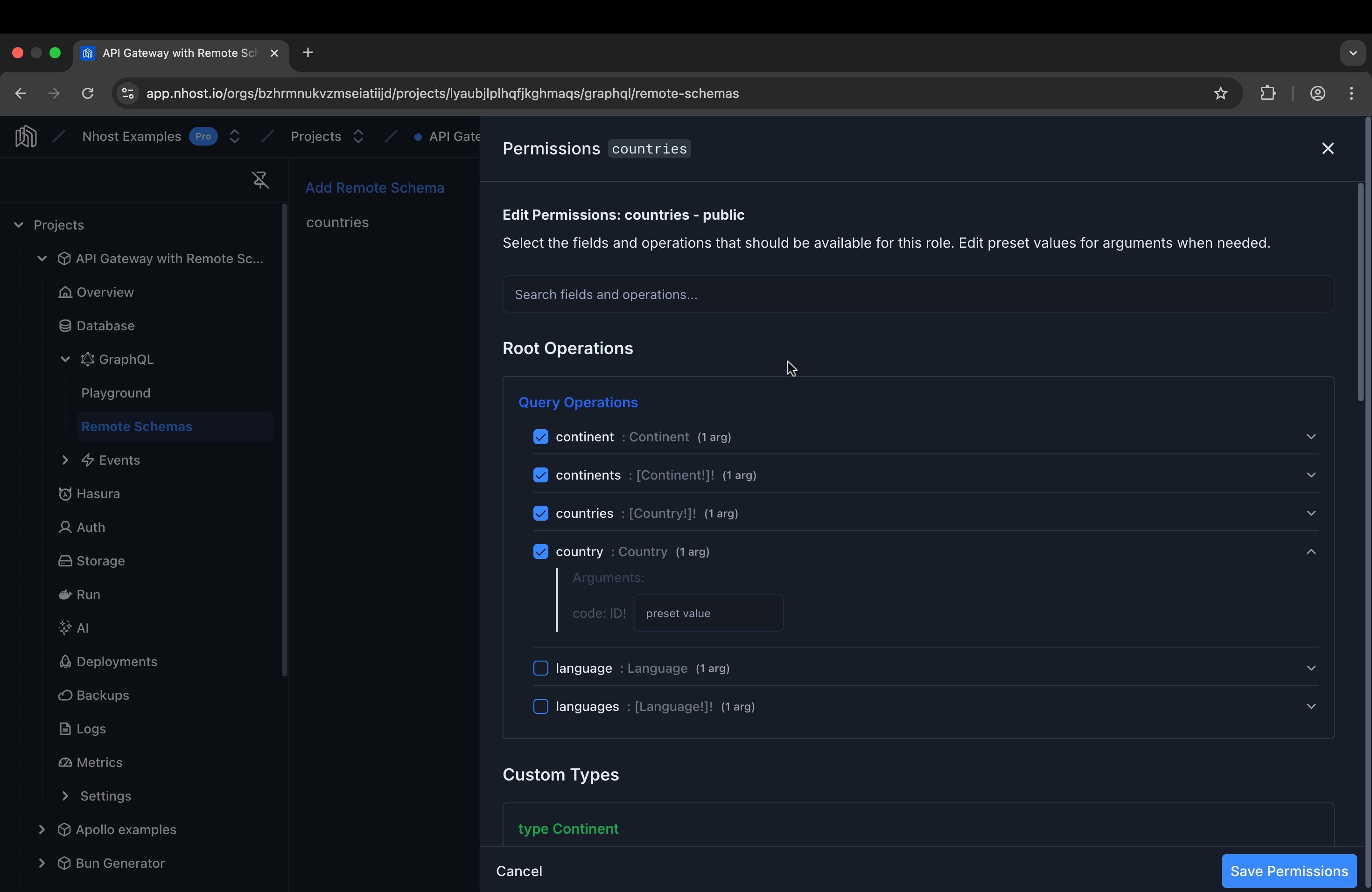

   You’ll see a list of all available operations and types from the Remote Schema:

   • Query operations: Each query field has a checkbox to grant or deny access
   • Mutation operations: Each mutation field has a checkbox to grant or deny access
   • Custom types: Each type exposed by the Remote Schema can be individually enabled or disabled

   Check the boxes for the specific operations and types you want to allow for this role.



4. Save permissions

   Click Save Permissions to apply your changes.

For more information about roles and permissions, see Permissions.

Relationships

Remote Schemas can be connected to other parts of your GraphQL API through relationships. This enables powerful cross-service queries.

Remote Schema to Database

Connect Remote Schema types to your database tables. For example, link a Payment type from your payments service to the users table:

query {
  users {
    id
    email
    # Payment data from Remote Schema
    payment {
      last_invoice
      subscription_status
    }
  }
}

Remote Schema to Remote Schema

Connect types between different Remote Schemas to create relationships across external services.

To configure relationships, navigate to the Relationships tab of your Remote Schema and define the join conditions between types.

Troubleshooting

Connection Timeout

If you see timeout errors:

• Increase the timeout value in the Remote Schema configuration
• Verify the remote service is accessible from your Nhost project
• Check if the remote service has rate limiting that might be blocking requests

Authentication Errors

If you receive 401 or 403 errors:

• Verify your API keys and tokens are correct
• Check that environment variables are properly set in your project settings
• Ensure the header configuration matches what the remote service expects

Type Conflicts

If schema introspection fails due to type conflicts:

• Use GraphQL Customizations to add prefixes or suffixes to types
• Enable root field namespacing to isolate the remote schema

Permission Denied

If users receive permission errors when querying Remote Schema fields:

• Verify enableRemoteSchemaPermissions is set to true in your configuration
• Check that the user’s role has been granted access in the Permissions tab
• Ensure you’ve deployed configuration changes by running nhost up locally or pushing to your cloud project
